H805GPFD Is Huawei MA5600 Series 16 Port GPON Service Board

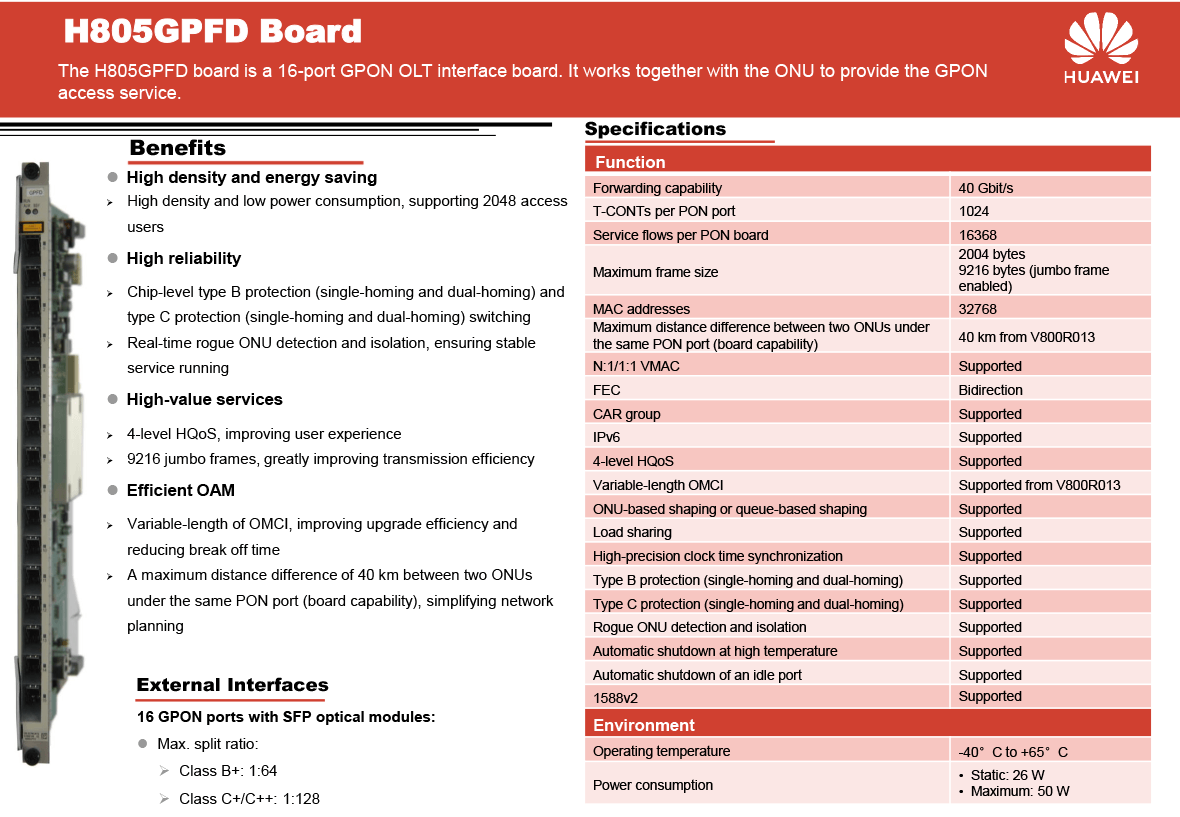

Huawei MA5600 Series 16 Port GPON Service Board H805GPFD Overview
H805GPFD is a 16-port GPON OLT interface board. It works with the optical network unit (ONU) to provide GPON access service.

|
Specification |
H802GPFD/H805GPFD/H806GPFD |
|
Port quantity |
16 |
|
MAX Split ratio (Class B+) |
1: 64 |
|
MAX Split ratio (Class C+/Class C++) |
1: 128 |
|
ONU-based shaping |
Yes |
|
Optical performance monitor |
Yes |
|
Controlled optical signal transmission of the optical module |
Yes |
|
ONU-based rate limitation |
Yes |
|
CAR group |
Yes |
|
Temperature query and high temperature alarm |
Yes |
|
Automatic power shutdown in case of a high temperature |
Yes |
|
Maximum differential fiber distance (km) |
40 |
|
Maximum Number of Service Flows Supported by the Board |
16368 |
|
Maximum Number of MAC address Supported by the Board |
32768 |
|
Available DBA bandwidth (based on single port) (kbit/s) |
1238784 |
|
Number of T-CONT supported by each GPON port |
1024 |
|
Board supporting downstream FEC |
Yes |
|
Board supporting upstream FEC |
Yes |
|
Rogue ONT detection |
Yes |
|
Number of ONUs supported by a GPON port |
128 |
|
Number of GEM ports supported by each board |
16384 |
|
Number of GEM ports supported by each GPON port |
3872 |
|
Number of service ports supported by each GEM port |
8184 |
|
HQoS (four levels) |
|
|
9216-byte Jumbo frames |
|
|
1588v2 |
Yes |
