SLB2CSHN,3054169,Huawei OptiX RTN 980 IDU Boards

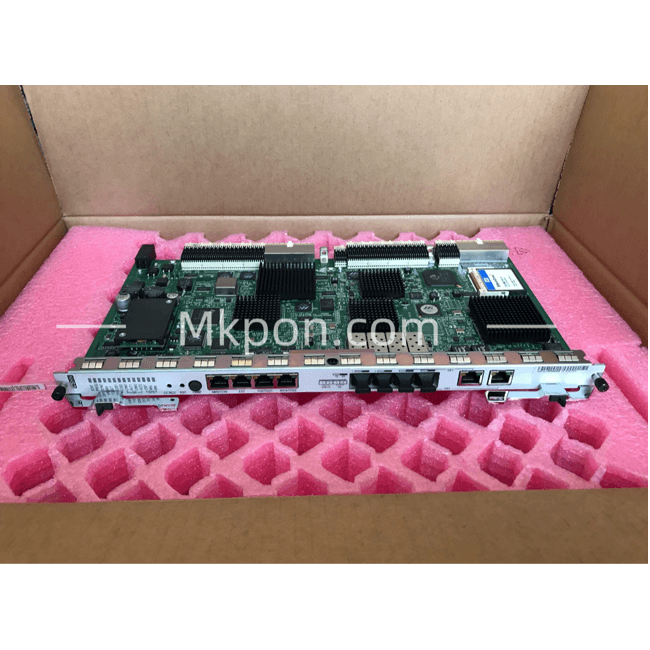

Huawei RTN 980 Board SLB2CSHN Overview

The CSHN is a system control, switching, and timing board

The functional versions of the CSHN are SLB1 and SLB2.

Compared with the SLB1CSHN, the SLB2CSHN incorporates the following new functions:

MPLS-TP Tunnel OAM
ETH PWE3 packets carrying control words
VPLSs

Functions and Features

Function and Feature		Description
Basic functions	Switching capability	Supports 22 Gbit/s packet switching.
	Cross-connect capability	Higher order cross-connect capacity: 128x128 VC-4s Lower order cross-connect capacity: VC-12/VC-3 full time-division cross-connections equivalent to 32x32 VC-4s
	System control and communication	Manages, monitors, and controls the running status of the IDU, and works as a communication service unit between the NMS and boards, allowing the NMS to control and manage the NE.
Clock	Clock source	Traces the clock source and provides each unit with the system clock and frame headers for service signals and overhead signals. The clock sources that can be traced include: External clock SDH line clock PDH tributary clock Microwave link clock Synchronous Ethernet clock
	Clock protection	Protection based on clock source priorities Protection based on the SSM protocol Protection based on the extended SSM protocol
	Time synchronization	Supports IEEE 1588v2 time synchronization. Supports ITU-T G.8275.1 time synchronization. Supports use of the AE 905S module as the clock source for time synchronization.
	IEEE 1588 ACR	Supported
	External clock port	1
	External time port	2
DCN	Outband DCN	Supports a maximum of 24 DCCs.
DCN	Inband DCN	Supported, with DCN bandwidths configurable
Network management protocols	HWECC protocol	Supported
	IP protocol	Supported
	L2 DCN	Supported
	SNMP	Provides the SNMP Get and Set functions for managing devices.
Protection	1+1 hot backup	Supported
MPLS/PWE3 functions		Supported
MPLS/PWE3 functions		See Table 1-12.
QoS functions		Supported
QoS functions		See Table 1-13.
Ethernet service functions		Supported
Ethernet service functions		See Table 1-14.
STM-1/4 service functions		Supported
STM-1/4 service functions		See Table 1-15.
Auxiliary ports and management ports	NMS port	1
	NMS serial port	1
	NE cascade port	1
	Outdoor cabinet monitoring port	1 (The port specifications comply with RS-485.)
O&M	Warm reset and cold reset	Supported
	Query of board manufacturing information	Supported
	Query of board power consumption	Supported
	Board temperature monitoring	Supported
	Board voltage monitoring	Supported
	Monitoring of indicators on other boards	Supported
	Hot swapping	Supported
	Pluggable CF card	Supported
