TN11LOA02,02310NUB,Huawei OSN 8800 Optical Transponder Unit

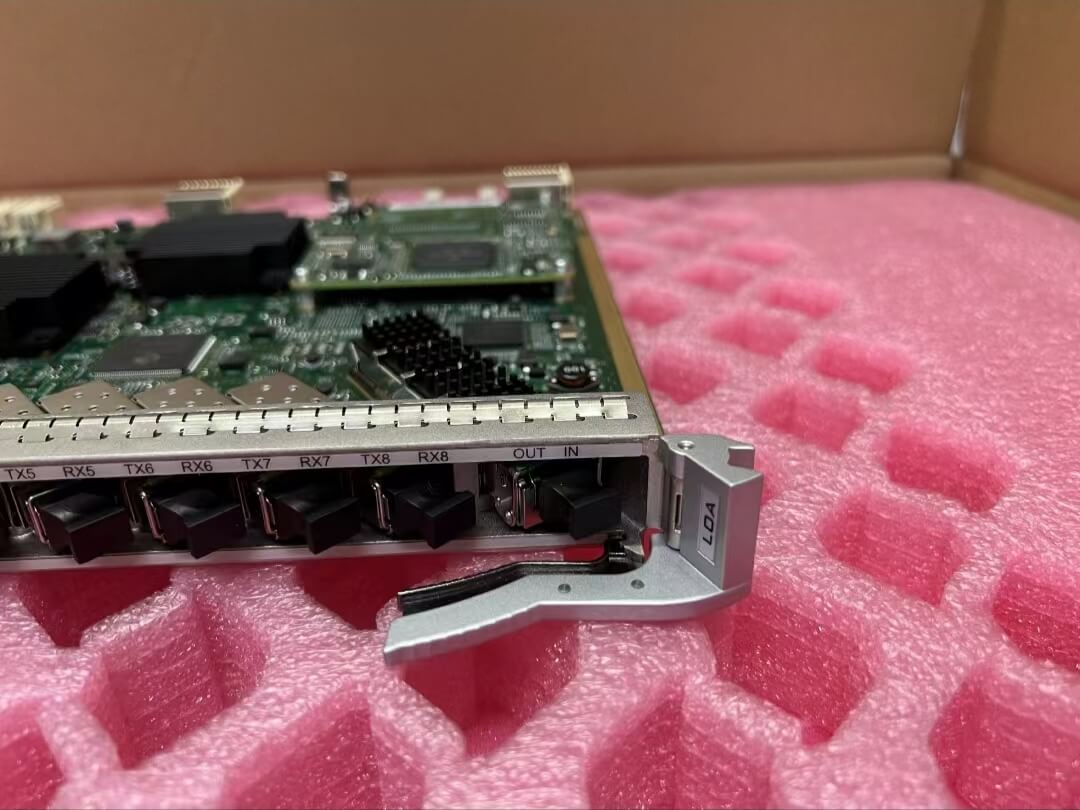

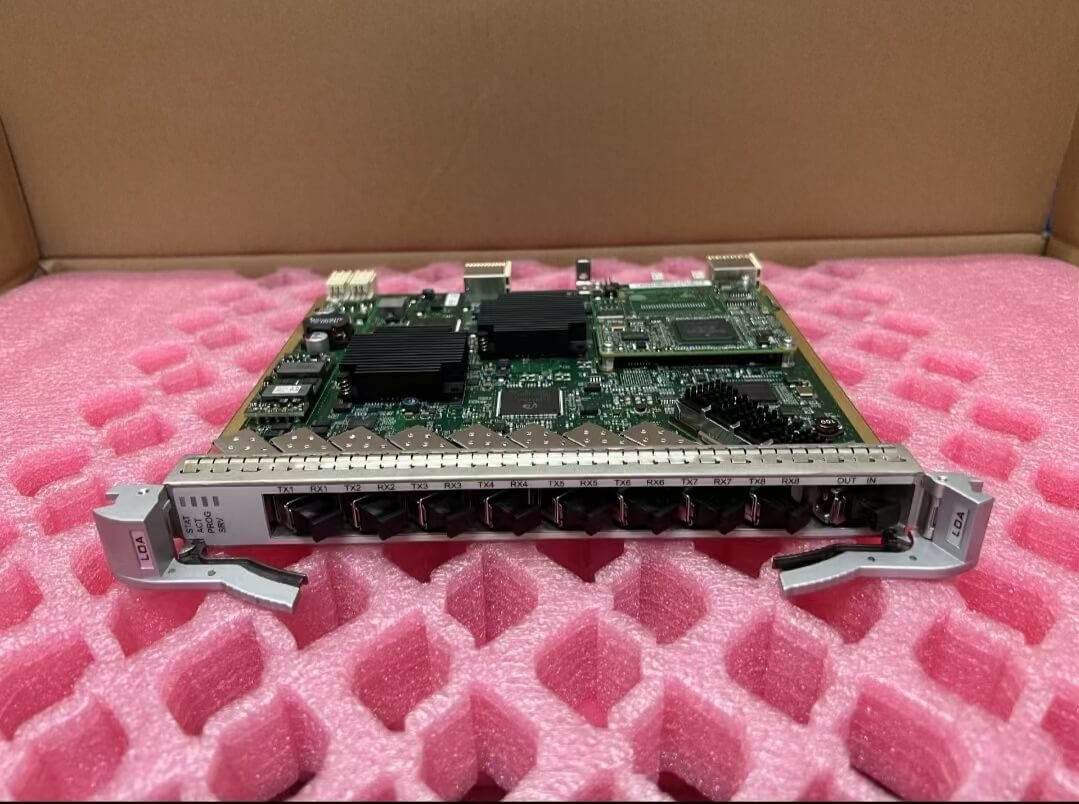

Huawei OSN 8800 Optical Transponder Unit TN11LOA02 Overview

TN11LOA02: 8 x Any-rate MUX OTU2 wavelength conversion board.

The available functional version of the LOA board is TN11.

The LOA board converges multiple service signals into 1 x OTU2 optical signals, and then converts the signals into standard DWDM wavelengths that comply with ITU-T G.694.1. The LOA board also performs the reverse process.

The LOA board supports functions and features such as wavelength tunable, OTN functions, and ESC.

The LOA board consists of the client-side optical module, WDM side optical module, signal processing module, control and communication module, and power supply module.

Function and Feature

Functions and features of the TN11LOA02 board

Function and Feature

Description

Basic function

LOA converts signals as follows:

8 x (125 Mbit/s to 1.25 Gbit/s signals) <-> 1 x OTU2
4 x (1.49 Gbit/s to 2.67 Gbit/s signals)<-> 1 x OTU2
4 x OTU1 <-> 1 x OTU2
2 x 3G-SDI/3G-SDIRBR/FC400/FICON4G/Infiniband 2.5G <-> 1 x OTU2
1 x FC800/FICON8G/Infiniband 5G <-> 1 x OTU2
1 x FC1200/FICON10G/10GE LAN<-> 1 x OTU2e

Supports hybrid transmission of signals at a rate of 4.25 Gibt/s or lower, but does not support hybrid transmission of FC800/FICON8G/Infiniband 5G signals. The total rate of signals received at the client side cannot exceed 10 Gbit/s.
