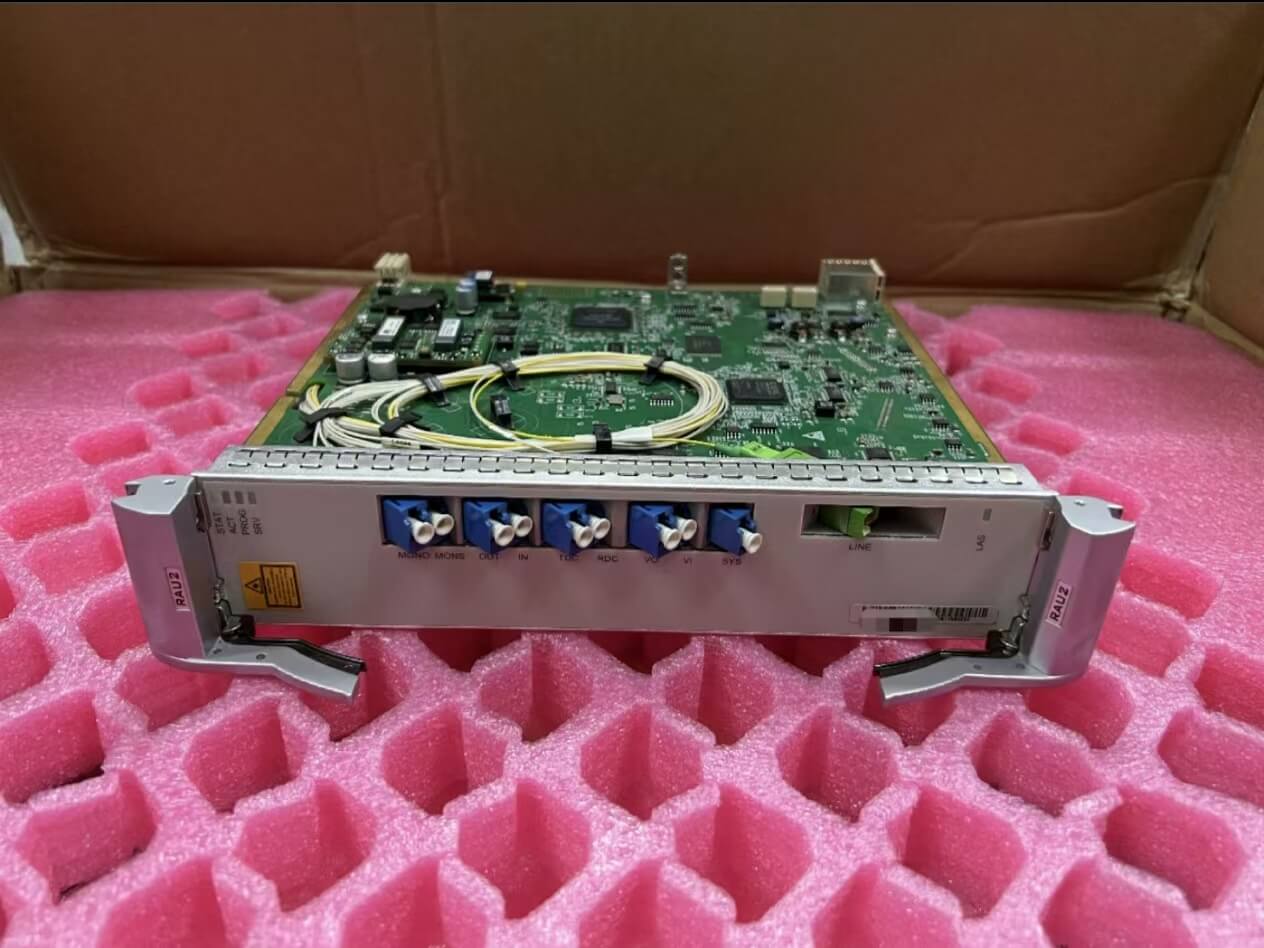

Huawei OSN 8800 Optical Amplifier Boards TN11RAU201 Overview

TN11RAU201: backward Raman and erbium-doped fiber hybrid optical amplifier unit

The RAU2 board has two functional versions: TN11 and TN12.

The RAU2 board integrates with a backward Raman module, an EDFA module and a VOA. Compared with an EDFA, the RAU2 board improves system performance in addition to amplifying C-band optical signals at the receive end.

The RAU2 board amplifies C-band optical signals and supports gain adjustment, in-service optical performance monitoring, gain locking, and transient state control.

The RAU2 board consists of a Raman module, EDFA module, OTDR drive and receiving module, VOA, driver and detection module, control and communication module, and power supply module.

Functions and features of the TN11RAU201 board

Function and Feature

Description

Basic functions

Amplifies the power of C-band optical signals in the C band using the built-in backward Raman module and EDFA module. This board supports wavelengths within the 1529-1561 nm range.
Provides for service transmissions with varying fiber spans without using electrical regeneration.
Performs distributed amplification of signals within a wide bandwidth over a long distance.

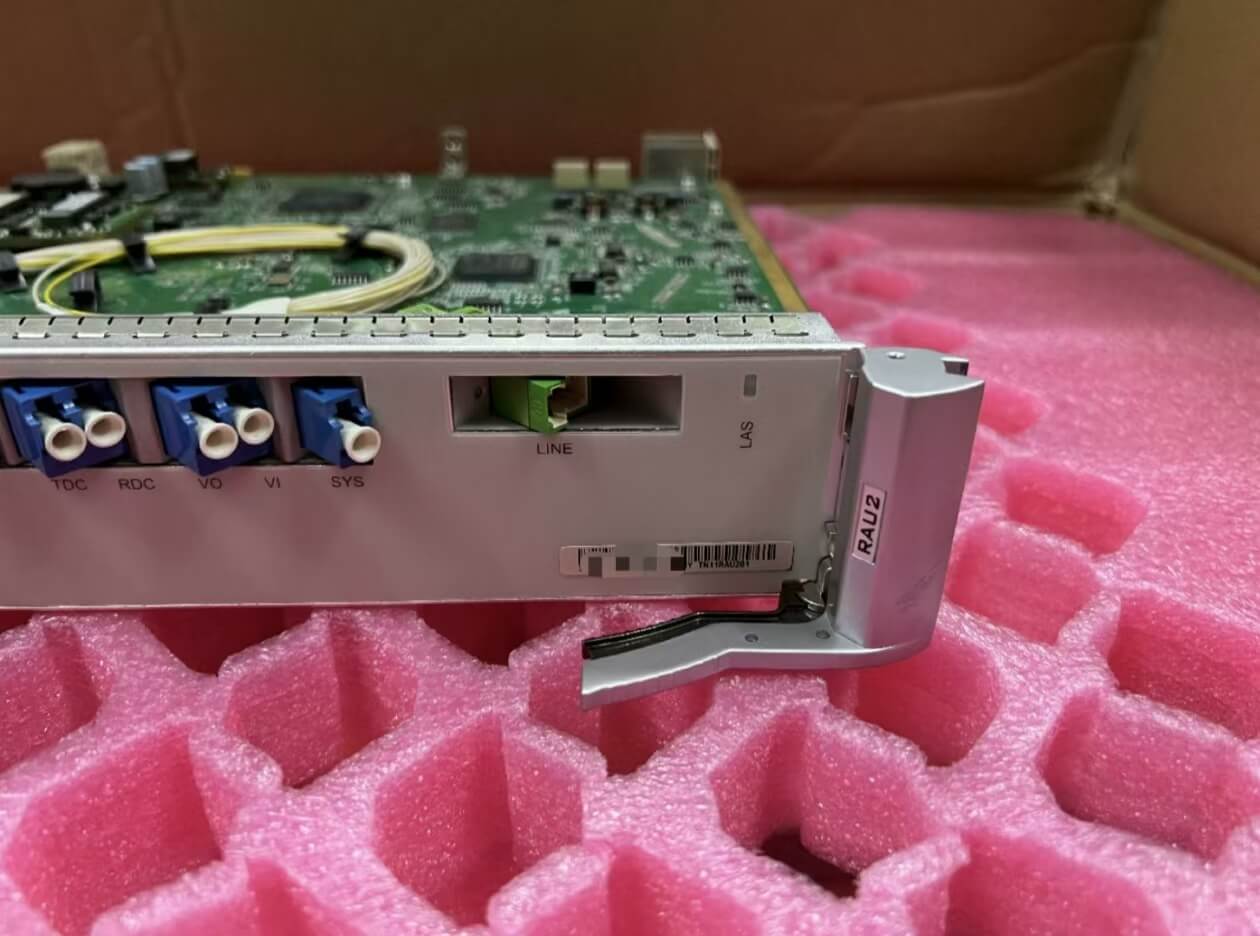

The TN12RAU2 board supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when an optical fiber is inserted into or removed from the LINE port.
