TN51RPC,Huawei Optix OSN 9800 Optical Amplifier Boards

Huawei Optix OSN 9800 Optical Amplifier Boards TN51RPC Overview

TN51RPC: Extended C-Band forward Raman processing board

The available functional version of the RPC board is TN51.

The RPC board is an OA board. It can produce multi-wavelength forward pump light with high power and achieve the distributed in-service amplification of signals within the entire bandwidth of the C-band and extended C-band while producing very little noise. The RPC board must be used with the EDFA.

The main function and feature supported by the RPC board are online optical performance

The RPC board consists of the Raman pump optical module, driving and detection module, control and communication module, and power supply module.

Functions and features of the TN51RPC board

Function and Feature

Description

Basic function

Supports forward Raman pump control.
Integrates with a forward Raman optical amplifier unit to amplify C-band and extended C-band input optical signals, covering wavelengths within the range of 1528.8 nm to 1567.6 nm.
Generates multi-channel pump light of high power, providing energy for the amplification of signals in the fiber.
Implements the distributed online amplification of signals over long distance with wide bandwidth and low noise.

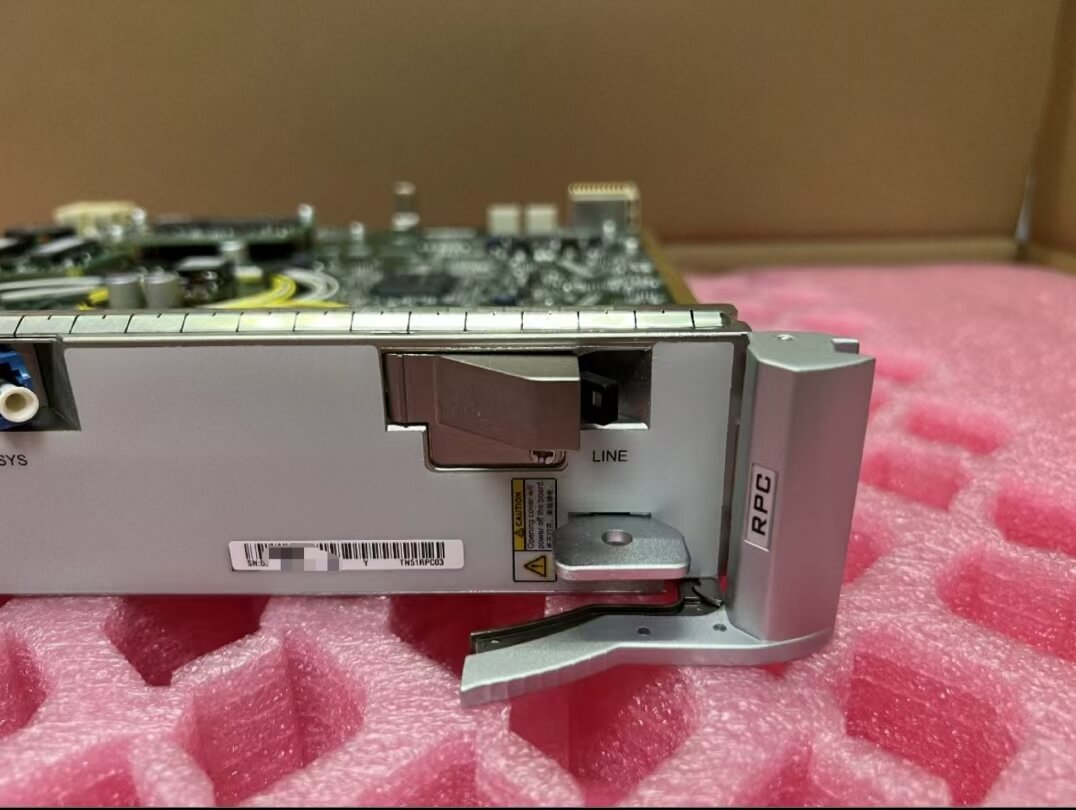

Supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when an optical fiber is inserted into or removed from the LINE port.
