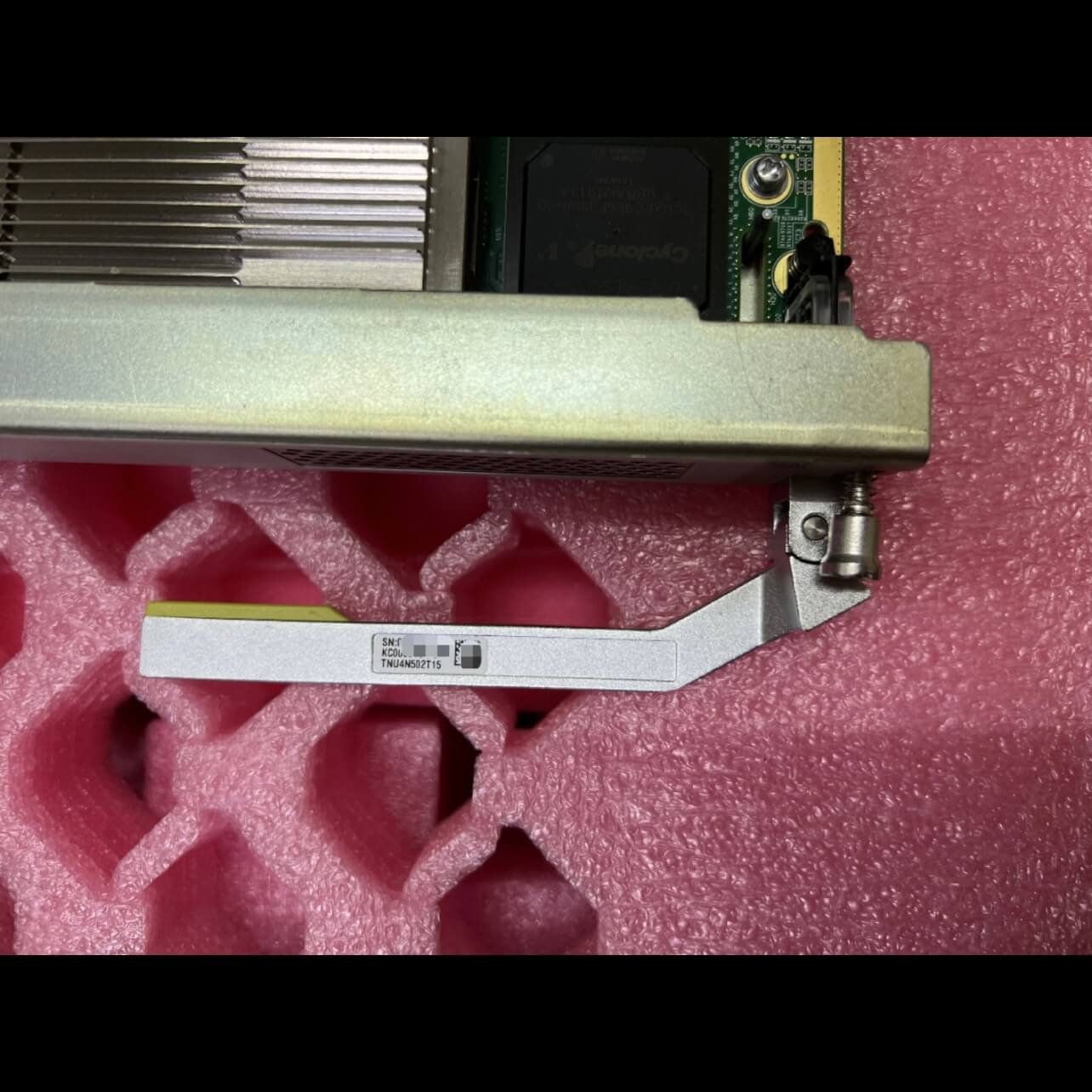

Huawei 2 Port 200G OTN Line Service Processing Board TNU4N502

Function and Feature

Description

Backplane capacity

The total backplane bandwidth is 400 Gbit/s.

WDM specification

Supports the DWDM specifications.

Tunable wavelength

Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).

FEC coding

100G line mode:

1. SDFEC2

200G line mode:

1. 200G 16QAM: SDFEC
2. 200G 16QAM-H: SDFEC
3. 200G e16QAM: SDFEC2

400G line mode:

1. 400G 16QAM(Dual_Ports): SDFEC
2. 400G 16QAM-H(Dual_Ports): SDFEC
3. 400G e16QAM(Dual_Ports): SDFEC2

Line modulation format

100G line mode:

100G QPSK wDCM

100G QPSK

200G line mode:

200G 16QAM

200G 16QAM-H

200G e16QAM

400G line mode:

400G 16QAM(Dual_Ports)

400G 16QAM-H(Dual_Ports)

400G e16QAM(Dual_Ports)

Typical channel spacing

1. 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
2. 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
3. 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
4. 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)

OTN overhead

100G line mode:

1. WDM-side OTU4 layer: supports SM overhead processing.
2. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
3. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.

200G line mode:

1. WDM-side OTUC2 layer: supports SM overhead processing.
2. ODUC2 layer: supports PM and TCM overhead processing.
3. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
4. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.

400G line mode:

1. WDM-side OTUC4 layer: supports SM overhead processing.
2. ODUC4 layer: supports PM and TCM overhead processing.
3. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
4. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.

Intra-board 1+1 protection

Supported

NOTE:

1. Supports intra-board 1+1 protection when working with optical protection boards.
2. Port in 400G mode: Do not support intra-board 1+1 protection.

ODUk SNCP

Supported

Tributary SNCP

Supported

NOTE:

When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.

Electrical-layer ASON

Supported

Optical-layer ASON

Supported

NOTE:

Only ASON without optical parameters is supported in high SOP mode.

Digital optical label

When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.

Physical clock

Supported

IEEE 1588v2

Not supported

ITU-T G.8275.1

Not supported

ITU-T G.8273.2

Not supported

Outband DCN

Supports communication over ESCs.

Test frame

Not supported

PRBS

Supports the PRBS function on the WDM side.

Latency measurement

The board supports latency measurement in the WDM-side optical port direction (upstream direction).

Channel loopback

100G line mode:

1. ODUk (k = 0, 1, 2, 2e, 3, flex) channel loopbacks

200G line mode:

1. ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks

400G line mode:

1. ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks

Port loopback

Supports WDM Side Loopback

Alarm and performance event monitoring

1. Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
2. Supports the monitoring of the laser bias current.
3. Supports the laser temperature monitoring.
4. Supports the optical power monitoring.
5. Supports the monitoring of OTN alarms and performance events.
